Karcher Puzzi 9/1 Bp Battery Spray Extraction Machine - Buy Direct

View more images

Product Description

Karcher Puzzi 9/1 Bp Adv SHELL

Name: Karcher Puzzi 9/1 Bp Machine Only
Brand: Karcher
SKU: 11017020
Price: 499.00 GBP
Availability: InStock

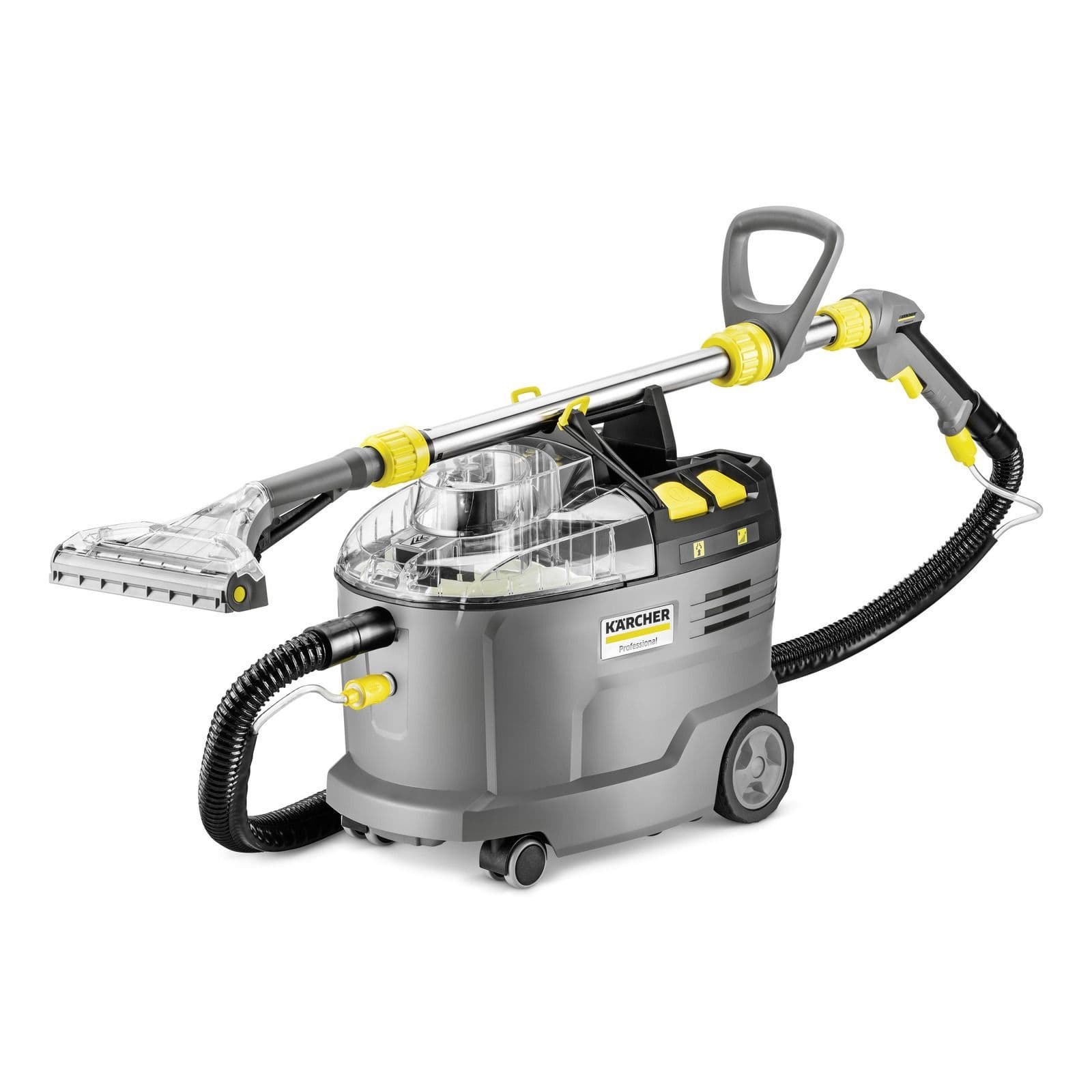

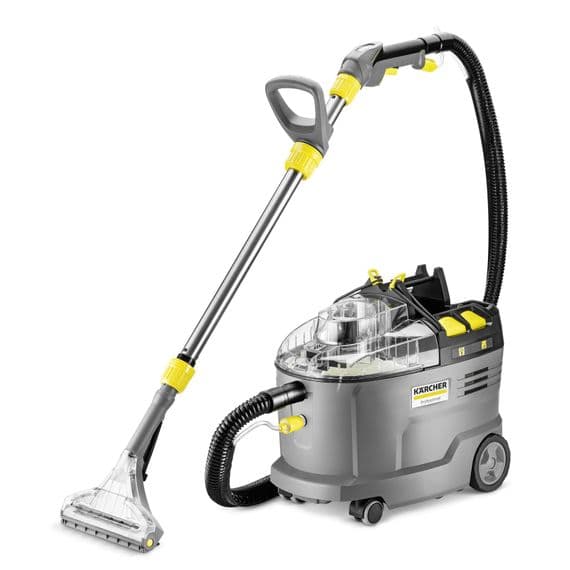

SHELL machine so battery and charger not included: For maximum manoeuvrability for fibre-deep cleaning: Our robust Puzzi 9/1 Bp Adv cordless spray extraction cleaner with upholstery nozzle and floor nozzle.

The only one of its kind in the world, offering an extremely robust design and cordless flexibility: Our Puzzi 9/1 Bp Adv Pack cordless spray extraction cleaner. As the only professional-standard battery powered spray extraction machine on the market, this Puzzi never fails to impress with its exceptional performance and maximum freedom of movement when deep-cleaning upholstery, carpets and other textile areas in any industry, be it hotels or hospitality, vehicle valeting or building cleaning operations. Despite its power, this Puzzi is extremely quiet, making it ideal for use in public areas: plus its ergonomically designed handle means it can easily be carried around one-handed. For best cleaning results, the cleaning solution is pressurised and sprayed deep into the textile fibres, then sucked back up together with the loosened dirt. When ordering this machine version, please bear in mind that the powerful 36 V Kärcher Battery Power+ battery and the corresponding fast charger must be ordered separately.

Brand new Showroom Machine

Features and benefits

Powerful Kärcher Battery Power+ 36V battery

Cordless freedom of movement. Real Time Technology with LCD battery display: remaining running time, remaining charging time and battery capacity. Compatible with all machines from the 36 V Kärcher Battery Power+ battery platform.

Durable, robust machine design

Long service life ensures high efficiency. Robust and hard-wearing diaphragm pump. Two large buttons operated by hand or foot for convenience.

Comprehensive set of carpet cleaning accessories

Flexible suction lip for optimum suction angle and ultimate drying results. 240 mm wide floor nozzle with integrated spray extraction tube. Ergonomic two-handed grip for extra user comfort.

Removable, smart 2-in-1 container

Quick and simple to fill the fresh water tank.
Convenient and simple to remove dirty water.
Quick-start illustration Puzzi 9/1 Bp for enhanced user safety.

Ergonomic carrying handle

Convenient, one-handed transport.
Conveniently well-balanced machine.
Suction tube holder integrated in carrying handle for secure and convenient transport.

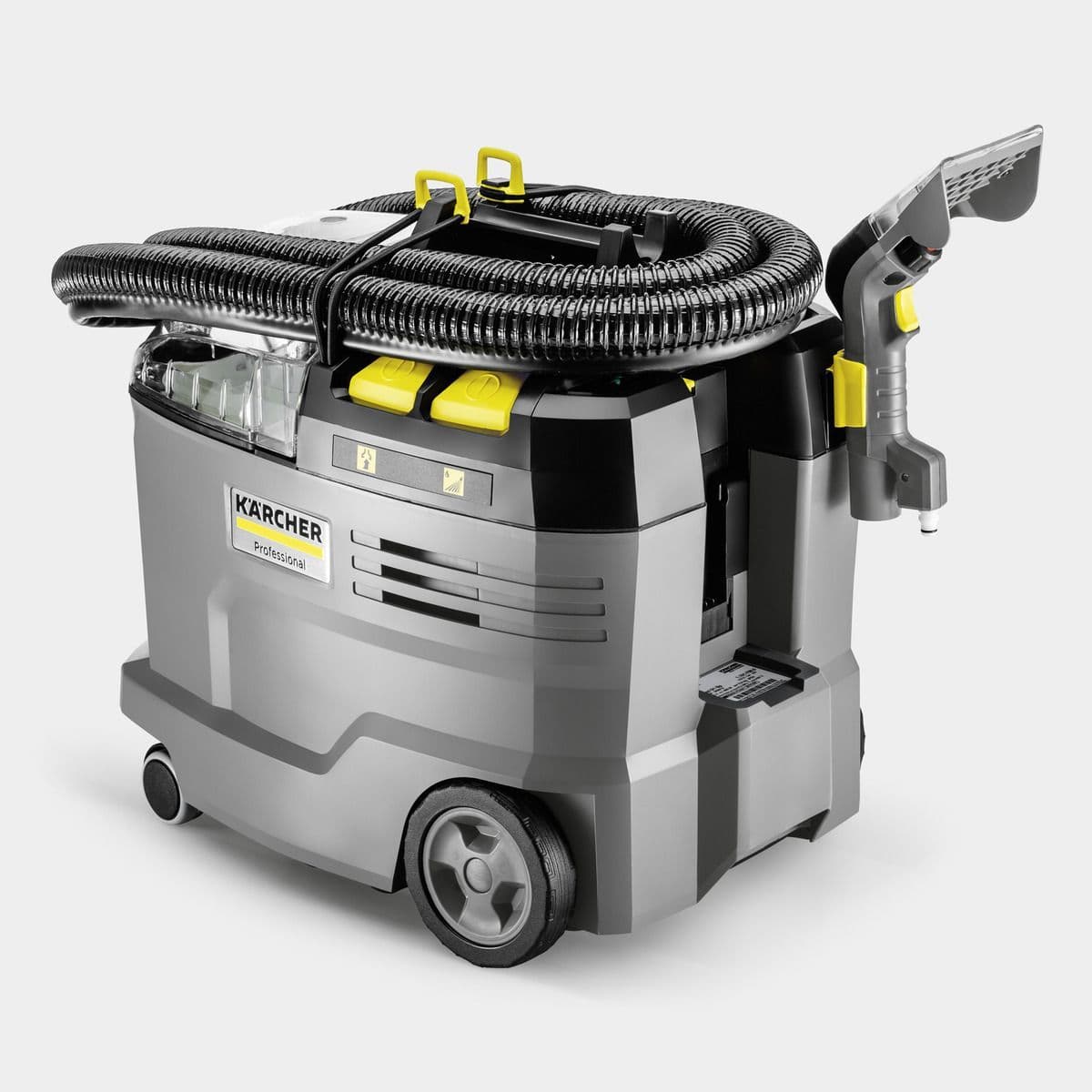

On-board accessory storage

All of the accessories can be stowed conveniently on the machine and are therefore always close at hand.
Practical, built-in storage compartment for cleaning agent tabs.
Secure storage, even during transport.

Handy upholstery nozzle

Easy yet thorough cleaning of upholstery and upholstered furniture.

Lightweight

Effortless, also one-handed transport over ledges and steps.
Designed for long periods of fatigue-free use.
Lightweight entry-level machine.

Low operating noise

Even suitable for cleaning in noise-sensitive areas and at night.
Increases the user comfort.
Very quiet machine for the entry-level segment.

2-in-1 comfort system with integrated spray and suction hose

The cleaning solution is sprayed deep into the fibres under pressure.
Thorough extraction of cleaning solution and ingrained dirt.
Quick drying.

Specifications

Technical data

Battery Platform	36 V battery platform
Area performance (m²/h)	12 - 18
Fresh/dirty water tank (l)	9 / 7
Air flow (l/s)	57
Vacuum (kPa)	15
Spray rate (l/min)	0.5
Spray pressure (MPa)	0.16 - 0.22
Power rating fan (W)	550
Power rating, pump (W)	4
Rated input power (W)	575
Sound pressure level (dB(A))	70
Standard accessory	ID 32
Number of batteries required (Piece(s))	1
Runtime per battery charging (min)	35 (7.5 Ah) / 27 (6.0 Ah)
Battery charging time with fast charger 80%/100% (min)	58 / 81
Charging Current (A)	6
Power supply for battery charger (V/Hz)	100 - 240 / 50 - 60
Weight without accessories (kg)	7.6
Weight incl. packaging (kg)	13
Dimensions (L × W × H) (mm)	540 x 332 x 460

Equipment

Variant: Battery and charger not included
Spray suction hose: 2.5 m
Hose transport lock
Spray extraction tube: 1 Piece(s), 700 mm, Metal
Additional handle
Motor protective filter
Fresh water filter
Upholstery nozzle
On-board accessory storage
Compartment for detergent tablets
Removable 2-in-1 container
Detergent: RM 760 Tabs, 2 Tablets

Specifications

MPN

1.101-702.0

EAN/UPC

4054278681221

GTIN

4054278681221

Country of Origin

RO

Customs Tariff Number

84518080

Size mm

591 x 391 x 596

Brand

Karcher

Condition

New

Product Code

11017020

Weight

13kg

Description

Karcher Puzzi 9/1 Bp Adv SHELL

SHELL machine so battery and charger not included: For maximum manoeuvrability for fibre-deep cleaning: Our robust Puzzi 9/1 Bp Adv cordless spray extraction cleaner with upholstery nozzle and floor nozzle.

The only one of its kind in the world, offering an extremely robust design and cordless flexibility: Our Puzzi 9/1 Bp Adv Pack cordless spray extraction cleaner. As the only professional-standard battery powered spray extraction machine on the market, this Puzzi never fails to impress with its exceptional performance and maximum freedom of movement when deep-cleaning upholstery, carpets and other textile areas in any industry, be it hotels or hospitality, vehicle valeting or building cleaning operations. Despite its power, this Puzzi is extremely quiet, making it ideal for use in public areas: plus its ergonomically designed handle means it can easily be carried around one-handed. For best cleaning results, the cleaning solution is pressurised and sprayed deep into the textile fibres, then sucked back up together with the loosened dirt. When ordering this machine version, please bear in mind that the powerful 36 V Kärcher Battery Power+ battery and the corresponding fast charger must be ordered separately.

Brand new Showroom Machine
